3TDS Dasso CTECH PLUS decking
dassoCTECH PLUS outdoor bamboo is processed from renewable bamboo, which is eco-friendly. The
implementation of the patented CeramiX® technology ensures the excellent quality, such as high durability, high

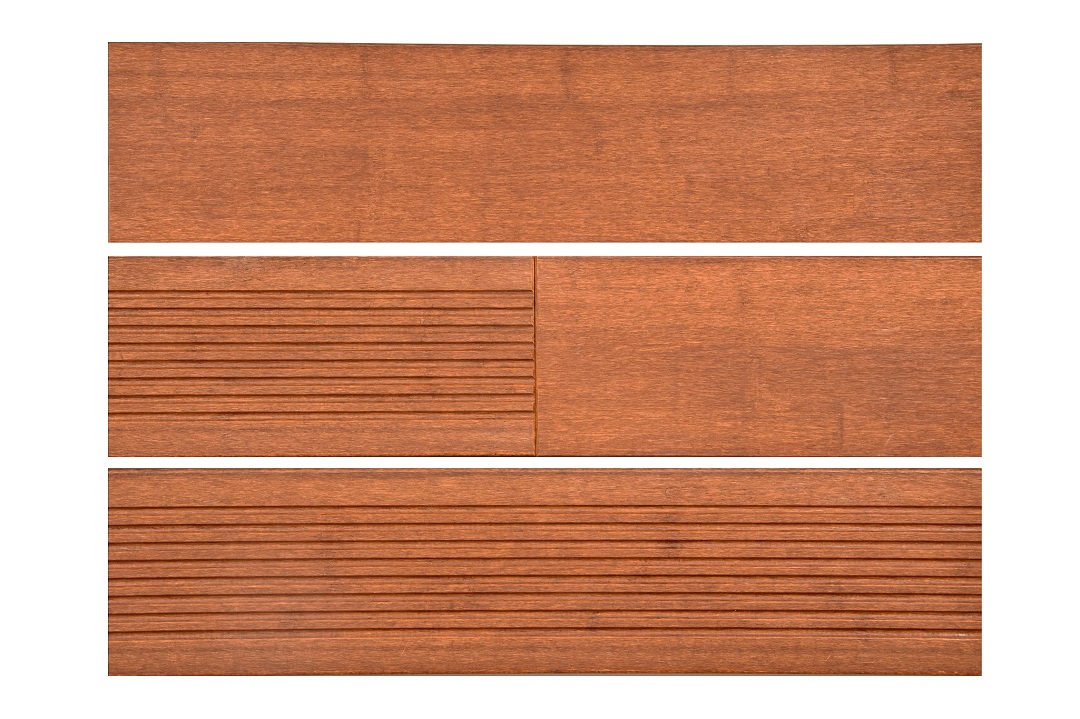

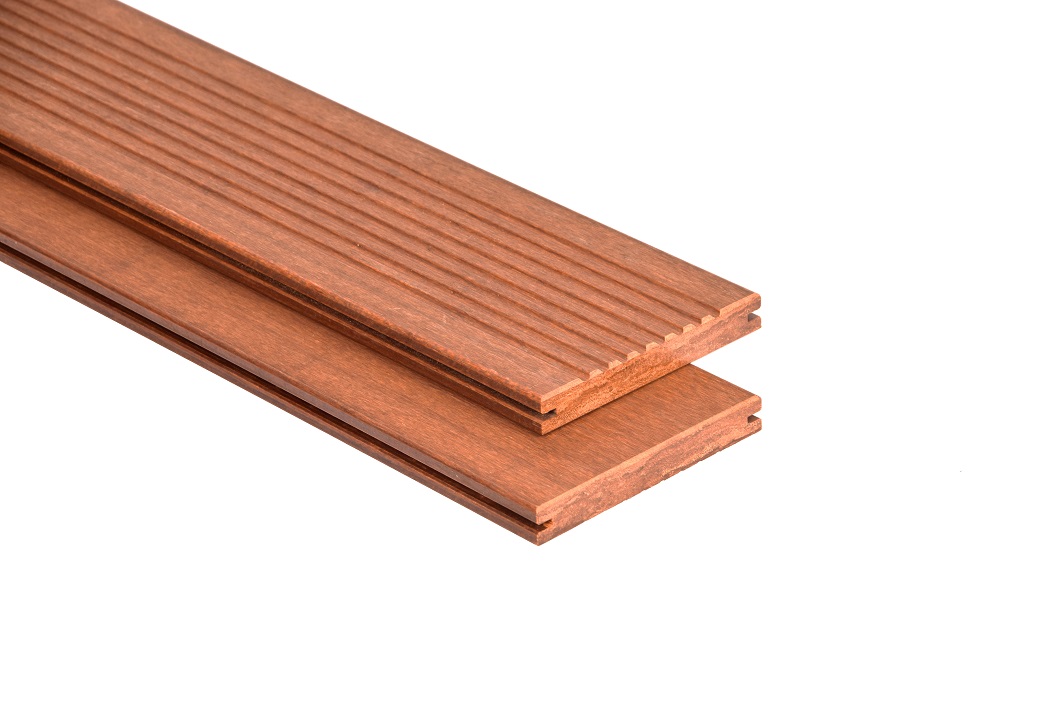

fire-rating, and high stability. The 3050mm length is high-end and atmospheric; offers the possibility to choose
between either the grooved or the flat surface; suitable for the outdoor landscape, platform plank road, swimming
pool, and other commercial places or family residences.
| Product code | Size |
|---|---|
| ELD20-SG2-PSR/V ELD20-SG0-PSR | L3050*W137*T20 |
| ELD20-MG2-PSR/V ELD20-MBF-PSS | L3050*W155*T20 |
| Specifications Properties | Length/mm | Width/mm | Thickness/mm |
|---|---|---|---|
| Tolerance | ±0.5 | ±0.2 | ±0.15 |
| Physical Properties | Standard |
|---|---|
| Density/Specific Gravity | 1.1-1.3g/cm³ |
| Moisture content | 8%-12% |
| Hardness | 79.2N/mm² (DIN EN 1534) |
| Slip Resistance (flat) | 19°-B (DIN 51097) Equal R11 (According DIN 51130) |
| Slip Resistance (reed) | 22°-B (DIN 51097) Equal R11 (According DIN 51130) |
| Reaction to Fire | Bfl-s1 (DIN EN 13501-1:2010) |
| Static Bending Strength (5% percentile) | 110N/mm² (DIN EN 408) |
| Modulus of Elasticity (5% percentile) | 12300N/mm² (DIN EN 408) |
| Thickness of Swelling Rate | 4% (DIN EN 15534-1) |
| Width of Swelling Rate | 0.6% (DIN EN 15534-1) |
| Warping | <6mm and quantity is less than 10% |
| Banana Shape | <1mm/m along the length of the panels |
| Bamboo Nodes | Nodes are separated its width < 10 mm |
| Height Difference | <0.5mm |
| Packaging and label | According to packaging layout drawing, check the label |
| Biological and chemical Properties | Standard |
|---|---|
| Termite Resistance Level | DC D (EN117) |
| Biological Durability | DC 1 (EN 350:2016) |
| Release of Formaldehyde | E1 (<0.1mg/L) (GB/T17657-2013) |
- The warehouse should be well ventilated, with relative humidity from 45% to 75% at
temperatures ranging from 50°F (+10°C) to 104°F (+40°C). - Do not store product in pest infested and/or unsuitable warehouse.
- Leave the products in its original package when not in use, cover the bundles from top and
bottom to avoid the influence of climatic events and other environmentalhazards. - Store the product horizontally on the ground with pallet shoe on every pallet. The bottom
pallet should be placed on an even footing on spacer-pads or palettes. The maximum
height of stacked bundles should not exceed 4.5 m. - The difference between the spacers should not be more than 600mm, with distance of
starting and ending spacer from the edge of the bundle not exceeding 200mm (the
number ofspacers should not be less than 3).
