3TDS Dasso CTECH soffit

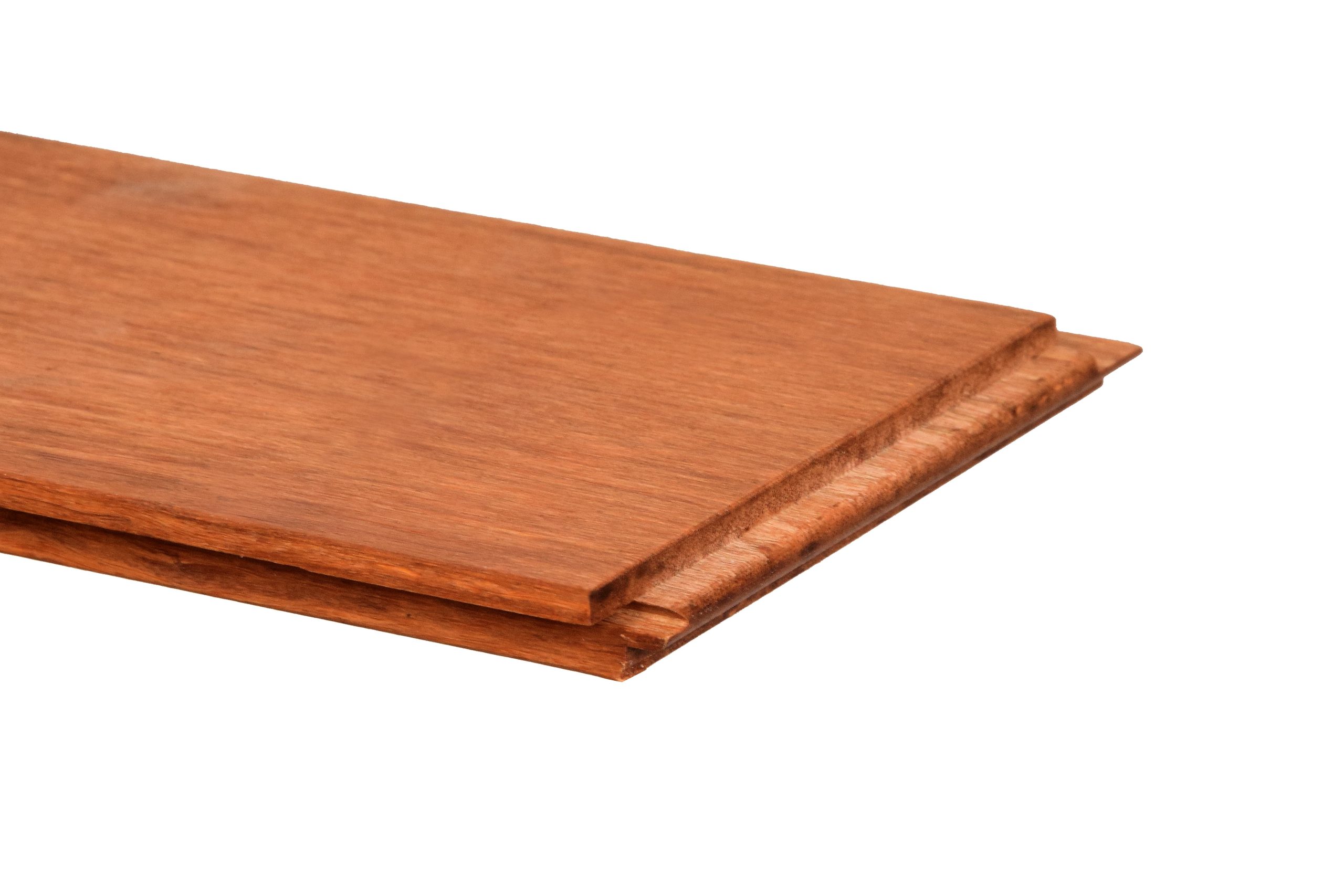

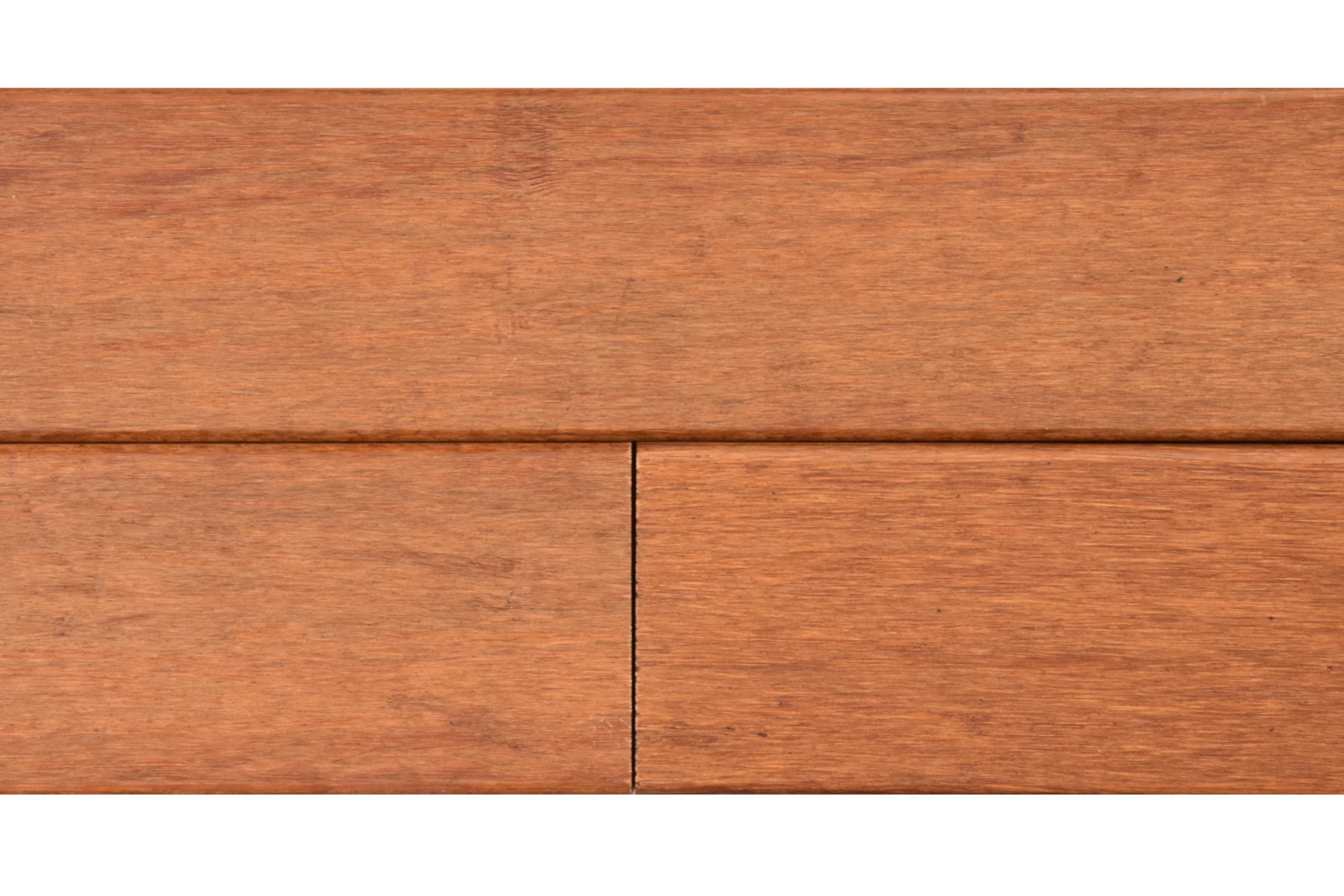

Single groove on edge 1×6 Fused Bamboo for use as starter plank for soffit or as fencing plank, 6’fttongue & groove end matched plank.Plank are routed from Fused Bamboo Panels. Fused Bambooisamaterial consist of 87% natural bamboo fiber and 13% phenolic resin produce through dassopatentedtechnology.
| Product Code | Size |
|---|---|
| ESO12-100-5TG-PSS | L1850 × W100 × T12 mm |
| ESO12-100-5TG-PSS-L0 | L1829 × W100 × T12 mm |
| Specifications / Properties | Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|
| Tolerance | ± 0.5 | ± 0.2 | ± 0.15 |
| Physical Property | Standard / Value |
|---|---|
| Density / Specific Gravity | 1.1 – 1.3 g/cm³ |
| Moisture Content | 8% – 12% |
| Hardness | 79.2 N/mm² (DIN EN 1534) |
| Static Bending Strength (5th percentile) | 110 N/mm² (DIN EN 408) |
| Modulus of Elasticity (5th percentile) | 12,300 N/mm² (DIN EN 408) |
| Thickness Swelling Rate | 4% (DIN EN 15534-1) |
| Width Swelling Rate | 0.6% (DIN EN 15534-1) |
| Warping | ≤ 6 mm and quantity < 10% |
| Banana Shape | ≤ 1 mm/m along the length |
| Bamboo Nodes | Nodes separated, width ≤ 10 mm |
| Height Difference | ≤ 0.5 mm |
| Packaging and Label | According to packaging layout drawing, check the label |
| Biological & Chemical Property | Standard / Value |
|---|---|
| Termite Resistance Level | DC D (EN 117) |
| Biological Durability | DC 1 (EN 350:2016) |
| Release of Formaldehyde | E1 (< 0.1 mg/L) (GB/T 17657-2013) |
- The warehouse should be well ventilated, with relative humidity from45%to75%at
temperatures ranging from 50°F (+10°C) to 104°F (+40°C). - Do not store product in pest infested and/or unsuitable warehouse.
- Leave the products in its original package when not in use, cover the bundles fromtopandbottom to avoid the influence of climatic events and other environmentalhazards.
- Store the product horizontally on the ground with pallet shoe on every pallet. The bottompallet should be placed on an even footing on spacer-pads or palettes. The maximumheight of stacked bundles should not exceed 4.5 m.
- The difference between the spacers should not be more than 600mm, with distanceof
starting and ending spacer from the edge of the bundle not exceeding 200mm(thenumber ofspacers should not be less than 3).
