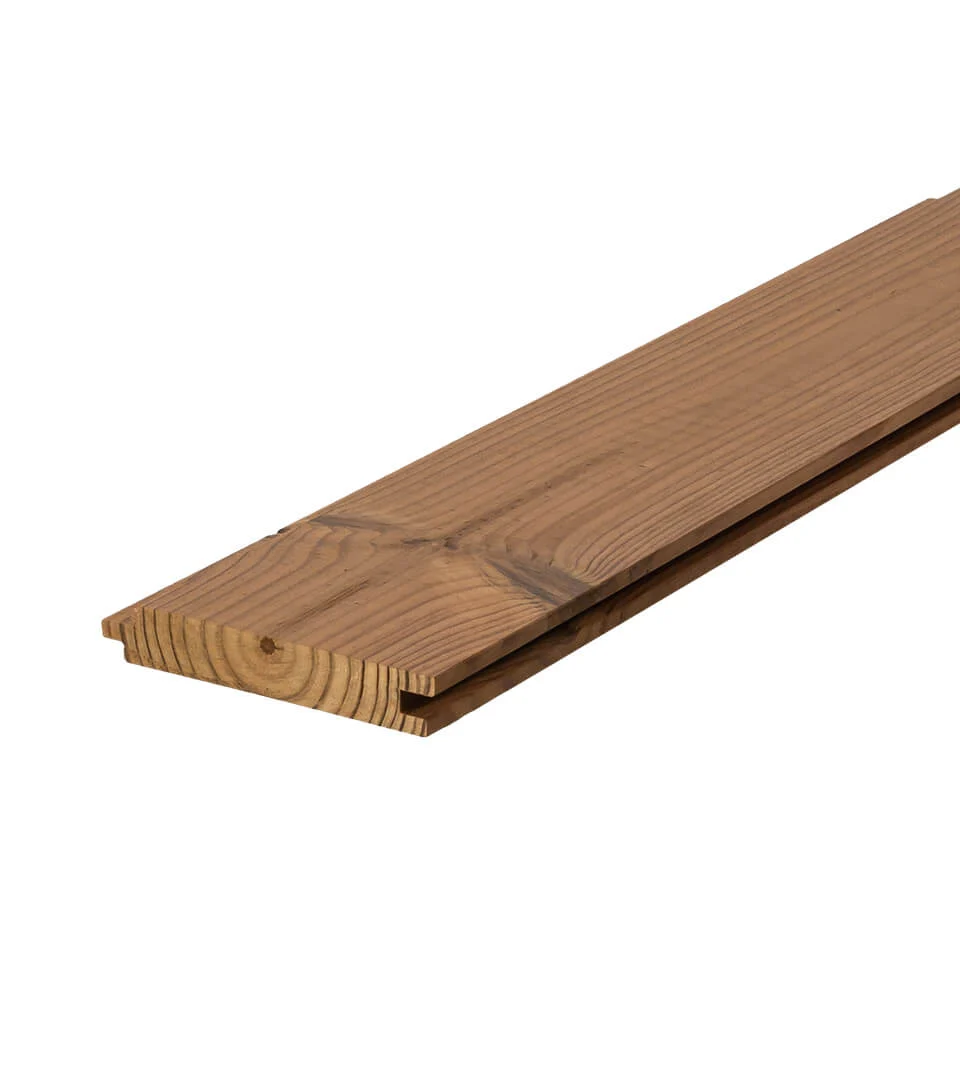

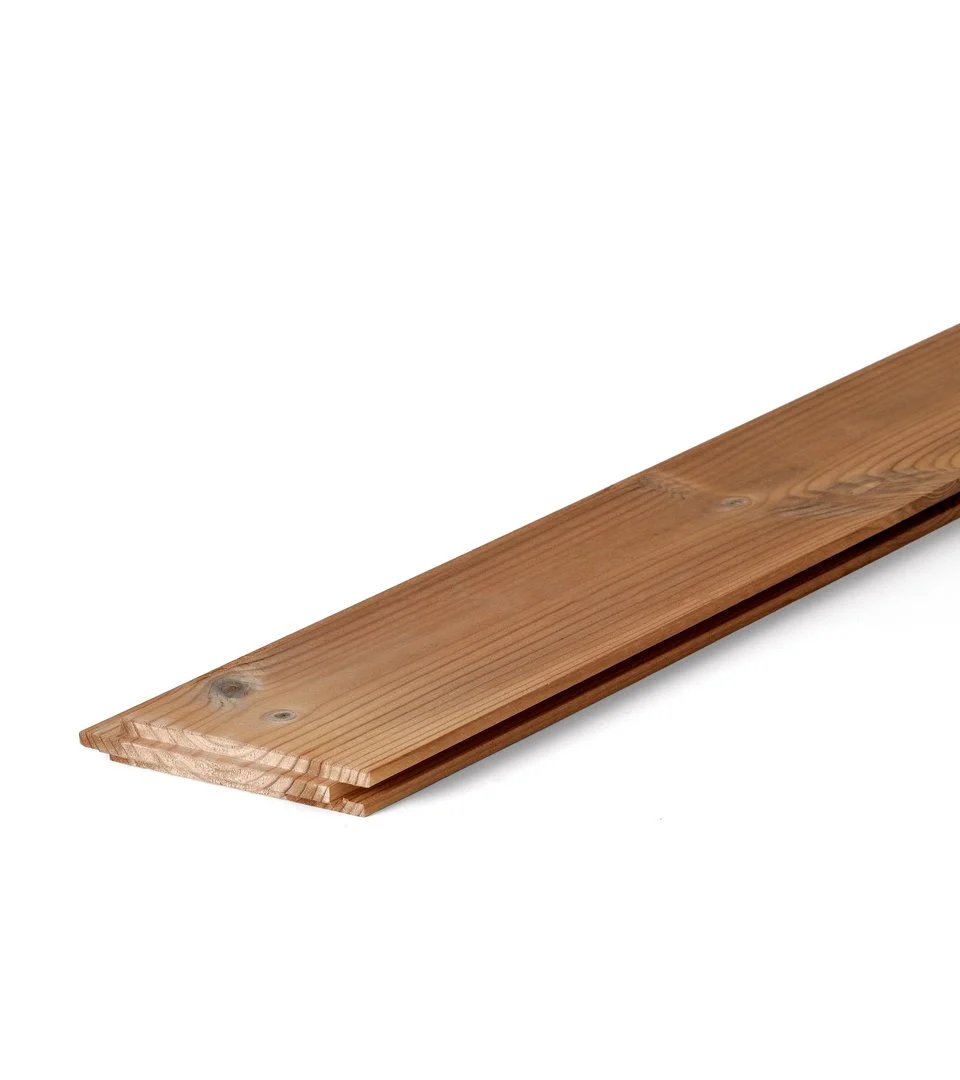

Luna Panel System 19×117[11625]
Luna Panel System 19×117 is a premium Thermowood
panel with sharp edge which creates a 3 mm shadow
line between panels.
| Property | Value |
|---|---|
| Size | 19 × 117 mm |
| Class | LunaThermo-D |
| Surface | Planed |
| Species | Pine, Pinus sylvestris |
| Lengths | 3.0 / 3.6 – 5.1 m (availability varies) | Length package in 30 cm modules |
| Coverage width | 106 mm | 9.4 rm/m² |
| Weight average | ~0.9 kg/m | ~8.5 kg/m² |
| Packaging | 216 pcs / package (half package) | 4 pcs/bundle, 54 bundles/package | Lunawood plastic hood on 5 sides |
| Article | 19x117 Panel System T&G Thermo-D RW A |
| Nominal size | 25 × 125 mm |
| Fire protection | Also available fire protected |
| Essential Characteristics | Pine (Pinus sylvestris) | Harmonized European Standard |
|---|---|---|
| Density | 420 kg/m³ | SFS-EN 317 |
| Reaction to fire class | D - s2, d0 | SFS-EN 13502-1 + A1 |
| Screw traction resistance | 19.45 ± 1.47 N/mm² | SFS-EN 13446 |
| Thermal conductivity | 0,09 W/(m·K) | EN ISO 13787 + EN 12667 |
| Durability class | Class 2 Thermo-D | EN 350-1 |
| Use class | Class 3 Thermo-D | EN 335 |
| Stability, shrinking & swelling | Tangential 4% / Radial 2% | SFS-EN 317 |
| Equilibrium Moisture | 6.40% | EN 13183-1 |
| Brinell Hardness | 1.4 N/mm² | SFS-EN 1534 |
| Janka | 1700 N | ASTM D143-94 |
| TVOC Thermo-D | Thermo-D 0.077 mg/m²h | ISO 16000-9:2006 / SFS-EN 16516:2017 |
| CO₂ emissions (EPD) | 117 kg CO₂ eq/m³ | Lunawood EPD |
